Bond-Rite® EZ

Newson Gale's portable static bonding solution with visual indication

Bond-Rite EZ Features
The Bond-Rite® EZ is extremely useful for processes/operations located in positions where fixed installations of static grounding equipment is not possible or desired by Ex hazardous area operators.

Datasheet Downloads

UK
US
DE
FR
ES
IT
CN

Complementing the level of flexibility offered by the Bond-Rite® range is the Bond-Rite® EZ. This option is extremely useful for processes/operations located in positions where fixed installations of static earthing equipment are not possible or desired by Ex hazardous area operators.

The primary application is to provide equipotential bonding of equipment* used in process operations that involve the transfer of flammable materials from one location to another. Examples include, but are not limited to:

  • Transferring materials between drums or Ex IBCs.
  • Transferring materials from road tankers into smaller containers, such as drums and Ex IBCs.
  • Manual pouring of flammables between containers.
  • HAZMAT spill recovery operations.

*Equipment = any metal process equipment that could be at risk of electrostatic charge accumulation (e.g., metal drums, Ex IBCs, road tankers, buckets, cans, etc.).

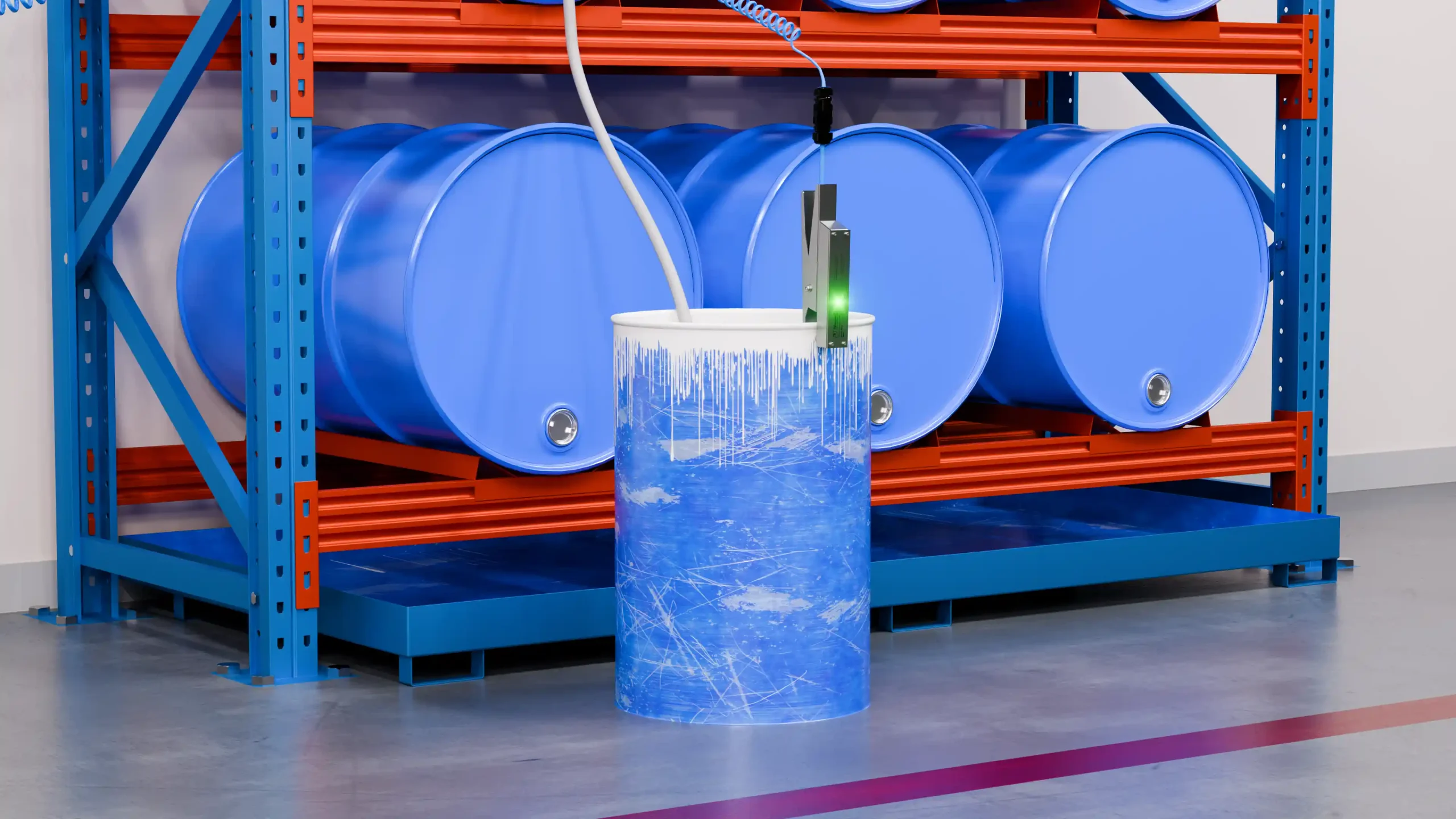

Bond-Rite EZ drum filling static earthing
The Bond-Rite® EZ works together with the Bond-Rite® REMOTE

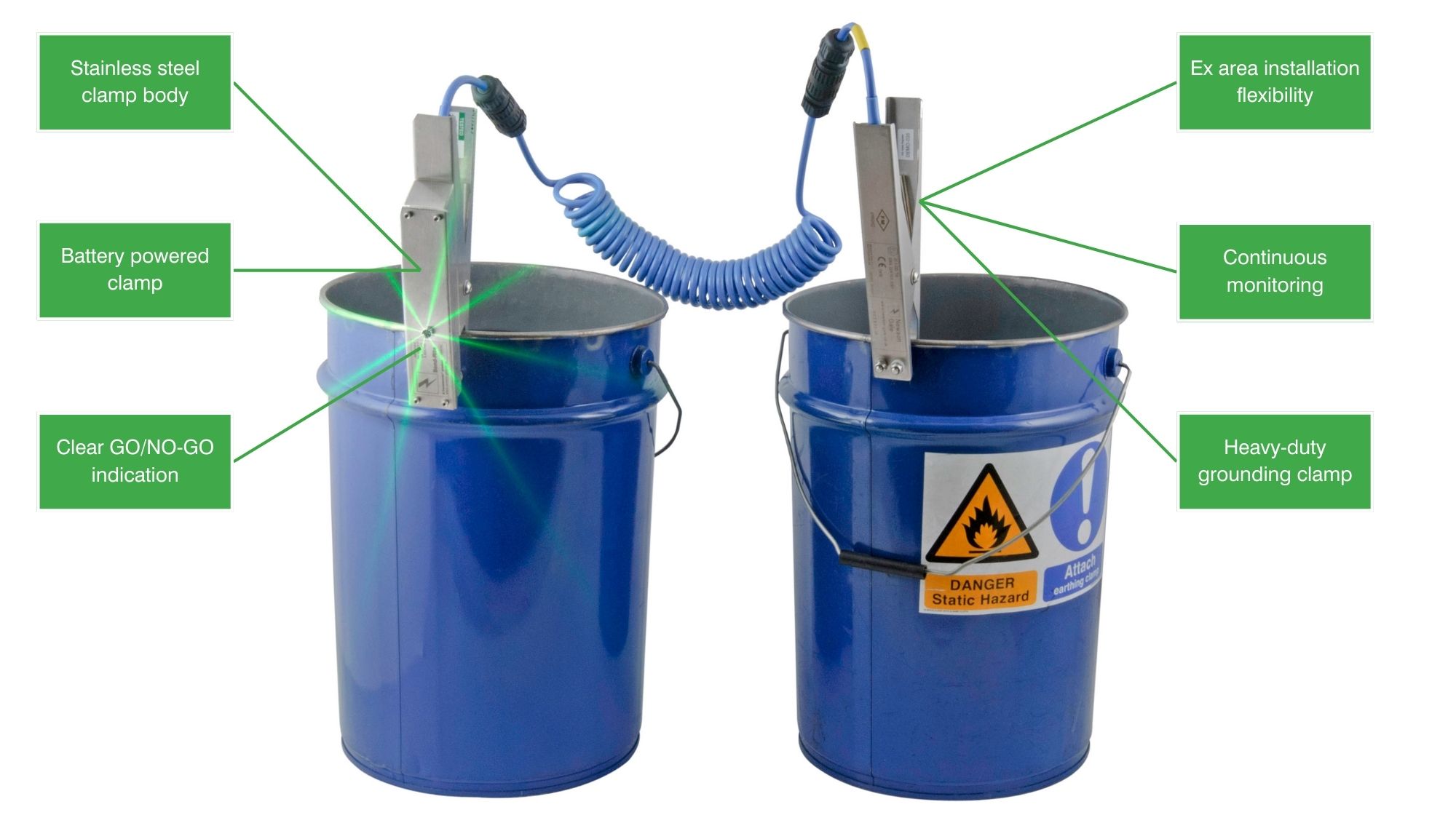

The primary benefits of the Bond-Rite® EZ are:

  • The Bond-Rite® EZ continuously monitors the electrical resistance between the objects that require equipotential bonding. The resistance threshold of 10 ohms or less is adopted to align with IEC TS 60079-32-1 (and PD CLC/TR 60079-32-1).
  • Operators are provided with a simple “GO/NO-GO” method of indication via a highly visible flashing green LED mounted on the lid surface of the Bond-Rite®.
  • The operators do not need to be trained to use Ex multi-meters, which can be complex and costly.
  • Periodic electrical resistance checks of non-monitored basic bonding clamp and cables by maintenance engineers are not required. The Bond-Rite® EZ checks the condition of the bonding circuit on a continuous basis when in use.
  • The Bond-Rite® EZ resistance threshold is set at 10 ohms or less and cannot be adjusted by operators.
  • The Bond-Rite® EZ is designed to be easy to operate and use.
  • The Bond-Rite® EZ does not require calibration.
  • The Ex certification permits use of the Bond-Rite® EZ in the highest hazardous area zones (Zone 0/20) due to its intrinsically safe ‘ia’ monitoring circuit.
  • The monitoring circuit and LED indicator are housed in a stainless steel clamp body that consists of a high-strength torsion spring and a pair of tungsten carbide teeth designed to bite through layers of deposits like rust, paints, and product deposits that could impede the transfer of electrostatic charges.

An additional level of flexibility is that it is certified for use in Zone 0/20 Ex atmospheres, avoiding any doubt as to the positioning of the unit in close proximity to potentially flammable gases/vapours or combustible dust atmospheres.

Refer to the technical specification below for specific hazardous area classification details.

The Bond-Rite® EZ consists of a single Bond-Rite® CLAMP connected to a heavy-duty 2-pole earthing clamp with a Cen-StatTM 2-core spiral or straight cable.

The 2-core clamps that can be used are:

The Bond-Rite® EZ monitoring circuit is powered by an intrinsically safe 9V lithium-manganese battery.  The typical battery lifetime is 6 months if used for 6 hours per day.

The Ex certificate of the Bond-Rite® CLAMP used with the EZ permits changing of the battery in the hazardous area if required.**

**In order to maintain the Ex certificate, it is essential that the battery is replaced with the intrinsically safe model specified in the Instruction Manual supplied with the Bond-Rite® CLAMP. Always refer to your country’s Ex certificate requirements.

Learn more about Industry Standards and Guidelines relating to static electricity in explosive hazardous areas:
  • Gain insights into the specification of hazardous area certified equipment.
  • Understand standards referenced in the industry.
  • Learn about the selection of Ex equipment.
  • Evaluate competency requirements for individuals.
  • Navigate Ex equipment documentations.
Industry Standards & Guidelines

ExVertitas 21UKEX0834

ExVertitas 19ATEX0543

IECEx EXV 19.0058

cCSAus CofC 1443677

cCSAus CofC Supp 1443677

CCC 2021312309000480

KCs GAS 22-AV4BO-0296X

KCs DUST 22-AV4BO-0297X

Grounding Clamps and Cable Length Options
Universal Resistance Tester (URT)

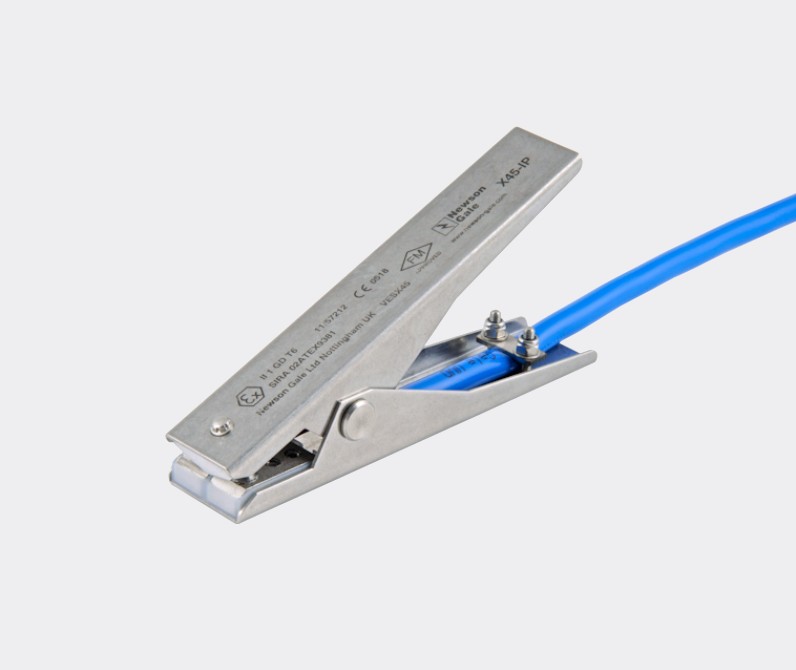

VESX45-IP Medium Heavy-Duty Clamp

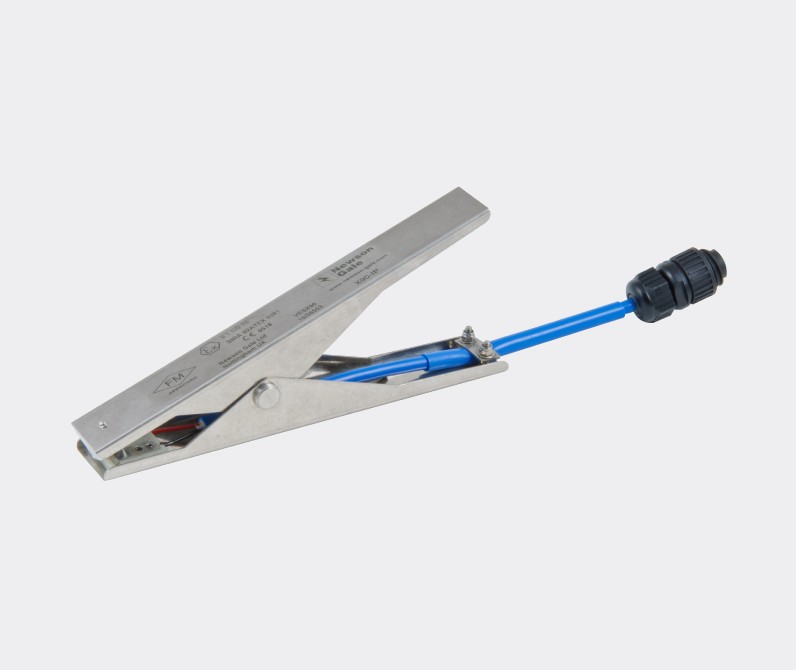

VESX90-IP Large Heavy-Duty Clamp
VESX50-IP Magnetic Grounding Clamp
